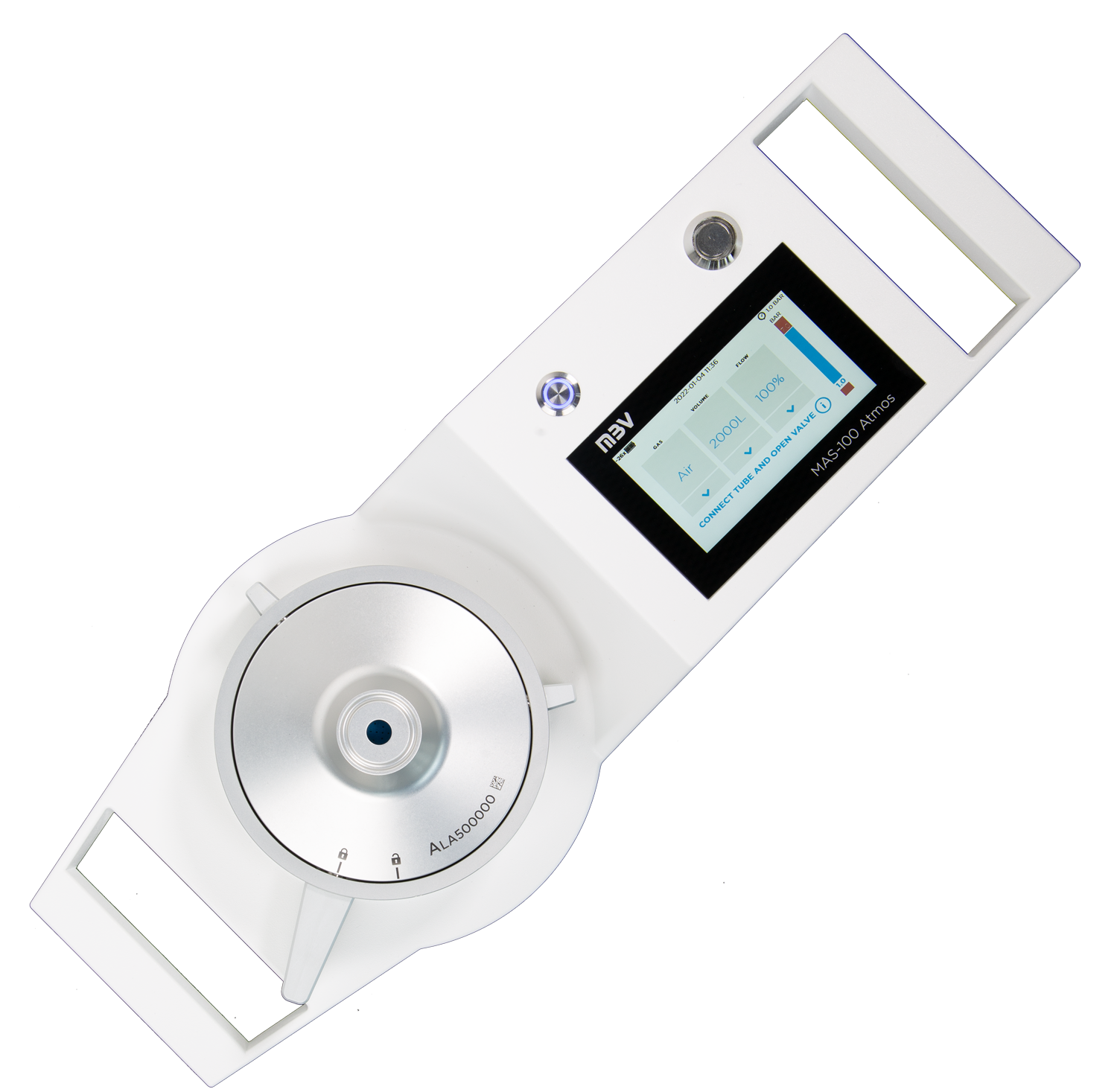

COMPRESSED GAS SAMPLER MAS-100 Atmos®
GERM COLLECTION UNDER PRESSURE – CONVENIENT, SAFE AND COMPLIANT MEASUREMENT IN COMPRESSED GASES
The MAS-100 Atmos is the latest version of our portable MAS-100 instruments. It is used for the microbiological monitoring of process and medical gases and is used in particular in the pharmaceutical industry, in hospitals as well as in the food and cosmetics sector. Developed in close cooperation with customers and our long-term distribution partner Merck KGaA, the smart compressed gas sampler sets new standards across the board. It impresses with its high ease of use, uncompromising safety and support for simple data handling as well as 21 CFR Part 11 compliant workflows. Combined with great flexibility in configuration, these features make the MAS-100 Atmos the ultimate instrument for perfect monitoring of your compressed gases.
- Dedicated for germ collection in compressed gases according to ISO 8573-7, ISO 14698 and EN 17141
- Proven and germ-protecting collection principle under pressure
- Automatic flow regulation and decompression
- Handy design with touch screen for maximum ease of use
- Tamper-proof audit trail for transparent and traceable workflow
- Optional 21 CFR part 11 compliant user management
- Flexible instrument configuration for paper- or software-based (LIMS/EM) workflows
- Comprehensive safety – protection mechanism on sampling head, HEPA H13 protection filter, and optional gas exhaust tube
Pharma
Hospital & Medical Products
Food & Cosmetics
non-binding and free offer
Get a quote now
We will be happy to provide you with an offer tailored to your needs. Please fill out the following contact form. We will get in touch with you as soon as possible.
* You can only be a world market leader if you go global. We have been doing it for many years with our partner Merck, a leading company in Healthcare, Life Science and Performance Materials. In order to guarantee you the best service worldwide for your MAS-100 Atmos, your request may be passed on to Merck. By submitting this form you agree to this. More about the cooperation with Merck can be found here. (The Life Science business of Merck operates as MilliporeSigma in the United States and Canada)
ATMOS. QUALITY
IN A NEW SPHERE.
- Ease of use
- Uncompromising safety
- Data integrity and 21 CFR Part 11
- High flexibility
EASE OF USE
Ease of use is a top priority for the MAS-100 Atmos. The compressed gas sampler impresses with the following features:
- Intuitive touchscreen with graphical user guidance
- Automatic and pressure-dependent regulation of the gas flow during sampling and decompression, even at limited flow rates
- Compact and lightweight design with operation-optimized sampling head
- Convenient configuration via browser-based user interface
- Easy cleaning and disinfection
SAFETY
The MAS-100 Atmos compressed gas sampler relies on a holistic safety concept with the following safety features:
- Sampling head with mechanical safety lock
- Integrated HEPA H13 protection filter
- Possibility of connecting an exhaust tube for the safe evacuation of gases
Data Integrity and 21 CFR Part 11
By recording a complete and tamper-proof audit trail, workflows are always documented, transparent and traceable in accordance with data integrity. In addition, the following additional optional configurations can support a 21 CFR Part 11 compliant workflow.
- Integrated 21 CFR Part 11 compliant user management for easy login with personal user key

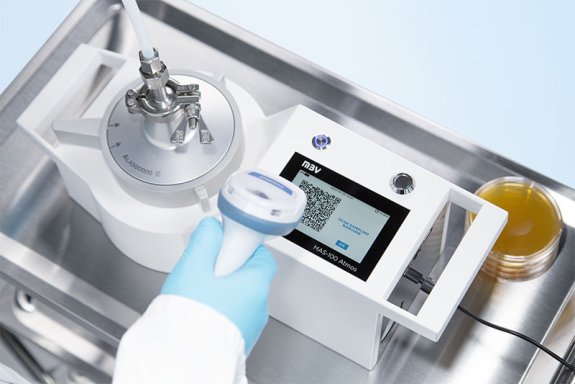

- Use of a barcode scanner to track the sampling environment
- Sampling barcode for direct data transmission to a higher-level system, minimizing the risk of transmission errors
FLEXIBILITY
The world of compressed gas nucleation is diverse. So are the on-site applications. A microbial gas sampler must be able to adapt. The MAS-100 Atmos is ready for this and can be easily and individually integrated for different workflows.
- Out-of-the-box outside 21 CFR part 11 requirements
- Stand-alone 21 CFR part 11 supporting instrument
- Smart connection to 21 CFR part 11 compliant LIMS/EM software
Find the perfect instrument configuration to meet your application needs (in german) »
MAS-100 Atmos – the inspiring genesis
GERM COLLECTION UNDER PRESSURE
Norms and standards require the determination of the bacterial count in process gases to protect products from microbial contamination (ISO 14698 and EN 17141, ISO 8573-7). In order to reliably estimate the risk of contamination, sampling must be performed as gently as possible. Therefore, the impaction of the pressurized gas on the nutrient plate is carried out under the same pressure as exists in the pressurized gas system. The pressurized gas is only released after sampling. This prevents the germs from being exposed to the large shear forces and abrupt drop in pressure and temperature in a pressure reduction valve, which could lead to reduced growth and survival. Only after sampling is the pressure controlled and slowly reduced.
TECHNICAL SPECIFICATIONS
- Gas types: compressed air, argon, nitrogen, and carbon dioxide (automatic gas volume compensation).
- Pressure range: 1.2-7 bar absolute (depending on gas type and flow mode)
- Flow rates: 50 or 100 L/min with optional automatic flow reduction to 50 L/min at low flow rates
- Individually configurable collection volume from 50 to 3000 standard liters
- Measurement accuracy of gas flow ±5%.
- Rechargeable battery, autonomy up to 5 hours
- Compatible with different 90mm nutrient plates
- Physical separation diameter d50 of 1.1um with standard perforated cover 300x0.6mm
- Standard interfaces: USB-C, Ethernet, USB-A
- HEPA H13 (ISO 35H) instrument protection filter
- Optional accessories such as a discharge hose for the safe discharge of gases
Software
- High-resolution 4.3-inch touchscreen with graphics-driven operator guidance
- Display of remaining sampling cycles on instrument screen
- Offline access to browser-based user interface for advanced instrument functions
- Numerous configuration options for maximum flexibility depending on the application
- Integrated 21 CFR part 11 compliant audit trail
- Tamper-proof data export: manually via browser-based software or directly to LIMS/EM software via sampling barcode
- Optional integrated 21 CFR part 11 compliant role-based user management (personal user key)
SCOPE OF DELIVERY
- MAS-100 Atmos compressed gas sampler
- Perforated lid 300x0.6mm
- Pressure connection tube 2m
- Dust cover
- Tri-clamp connector with silicone gasket
- Power supply with USB-C cable and region-specific adapters
- Preprogrammed hardware key (system administrator)
- Additional hardware keys for optional user management
- Flow and pressure calibration certificates MAS-100 Atmos and ISO 17025 calibration unit certificates
SUPPLY BOTTLENECKS FOR HARDWARE KEYS
ORDER HARDWARE KEY
With your MAS-100 Atmos you normally receive additional hardware keys for the optional user management. Due to delivery problems you have received a voucher, which you please redeem using the following order form:
CALIBRATION
PROPER SETTINGS LEAD TO ACCURATE RESULTS
It is very simple – a reliable microbial measurement cannot be obtained unless the sampling volume is accurate. For this reason, you should have the gas flow of your microbial sampler checked annually. Our experts can calibrate the MAS-100 Atmos compressed gas sampler here in Staefa or directly at your site and ensure traceable calibration in accordance with the highest international standards (accredited in accordance with ISO 17025).
Frequently Asked Questions (FAQ)
Find the answers to the most important questions about MAS-100 Atmos here.
Service and Support
The best product needs the best service to ensure that it functions perfectly and reliably at all times. As your partner in microbial air monitoring, our service team accompanies you throughout the entire product life cycle. Whether calibration, adjustment, support for applications or repair – high quality and your satisfaction are our top priority.
DISCONTINUATION MAS-100 CG EX
MAS-100 ATMOS AS SUCCESSOR COMPRESSED GAS SAMPLER
Perfection involves never standing still and constantly improving your own products. At MBV, we are doing just that.
As of June 2022, the MAS-100 Atmos will replace the previous MAS-100 CG Ex compressed gas sampler as the global standard. Production for the MAS-100 CG Ex has been discontinued, repairs and calibrations are still possible.
From experts for experts
Downloads

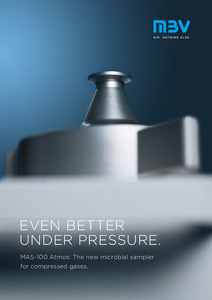

BROCHURE
Even better under pressure - MAS-100 Atmos the new sampler for compressed gases

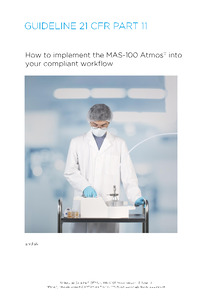

WHITEPAPER
Overview of use cases with the compressed gas sampler MAS-100 Atmos
SERVICE INFORMATION LETTER
Product launch of the new MAS-100 Atmos microbial sampler
ANY QUESTIONS?
Our expert Andy Zingre will be happy to assist you. We look forward to hearing from you.
Schedule a 30 minutes online meeting
